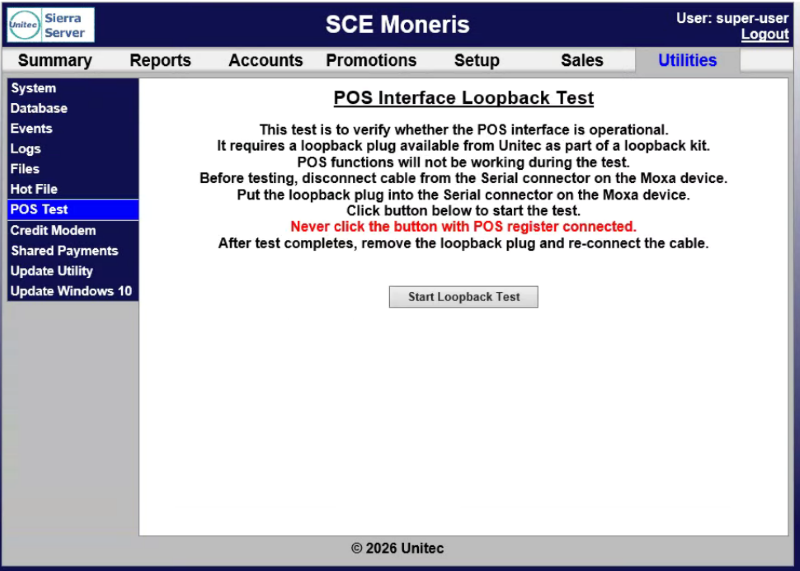

POS Interface Loopback Test (Utilities)

The POS Interface Loopback Test panel provides a PC-based software application as an aid to service personnel testing the communications link from a kiosk terminal to an external point of sale device (site controller, register, etc.). The POS Test is a hardware-only test that will allow the technician to validate the functionality of the DRB hardware.

Note: This test requires a loop back cable: DB9 male to female null modem adapter and DB9F to DB9F lap link cable.

Start Loopback Test

The Start Loopback Test function provides the ability to start the test.

Updated: 042726
